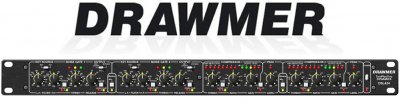

Drawmer DSL424 Two PlusTwo Dynamics DSL-424

DSL424 TwoPlusTwo Dynamics

The DSL424 provides the engineer with a 1U four channel comprehensive toolbox capable of solving the most complex dynamic problems. Incorporated in the 1U package are two industry standard frequency conscious noise gates and two soft/hard knee compressors with variable threshold limiting.

The channels may be front panel configured as four individual stand alone processors, a stereo linked pair of comp/limiters with a stereo linked pair of gates. Alternatively, any combination of processing can be achieved by rear panel patching. The DSL424 combines the gates of the DS404 with the comp/limiters of the DL441 to provide a versatile 1U problem solver invaluable in applications where rack space is limited.

Noise Gate
    •    Variable High Pass and Low Pass Filters for frequency triggering
    •    Auto attack
    •    Variable release
    •    Switchable range with LED status
    •    Selectable ‘Hard’ (drums etc.) or ‘Soft’ (vocals etc.) modes
    •    1/4 inch jack Key Inputs
    •    Key Listen facility
    •    Slave linking
    •    ‘Traffic light’ gate status metering
    •    Balanced +4dB XLR in/out
Compressor/Limiter
    •    Switchable Hard/Soft knee compression with variable threshold, ratio and output gain
    •    Auto attack/release
    •    Variable ‘zero overshoot’ transparent limiter
    •    High resolution bargraph metering of gain reduction and input/output level
    •    Stereo linking
    •    Balanced +4dB XLR in/out
